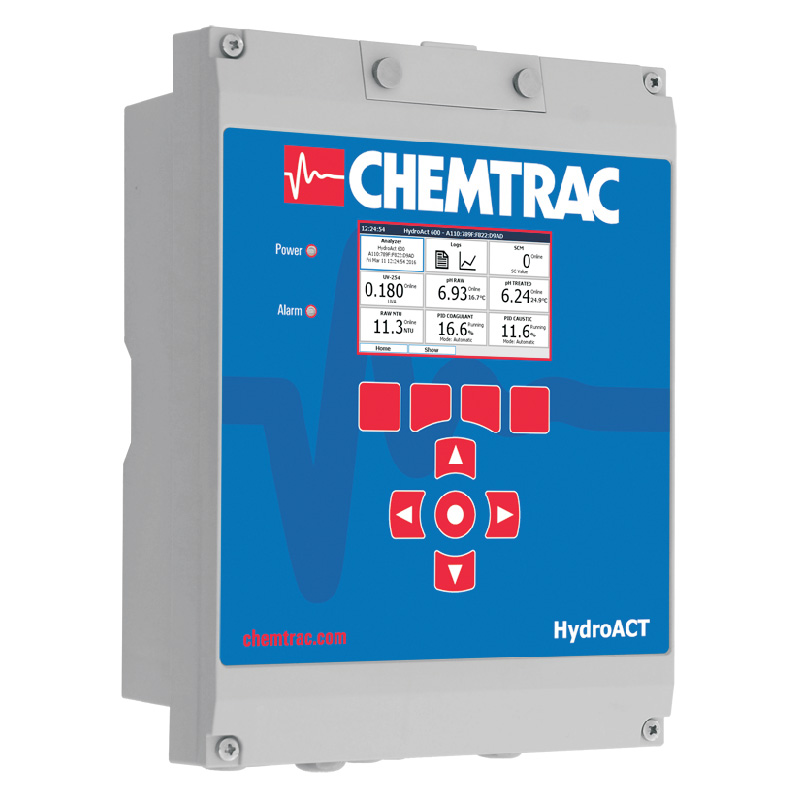

Chemtrac Deyroart Multiparameter分析仪

The HydroACT analyser offers a wide range of customisable capabilities to suit any user’s requirements: from a basic analyser with a single sensor and analog output, to a more comprehensive solution consisting of a controller with multiple sensors, several chemical feed control outputs, and digital communications (Modbus or PROFIBUS). Other optional features include analog and digital I/O, data logging, and remote access over LAN or GSM modem. The versatility of the HydroACT platform helps ensure a more affordable and flexible solution by allowing the user to purchase only the specific hardware and firmware components that they actually need, while allowing for upgrades to be performed at a later time if
应用程序要求发生变化。水管分析仪有三个版本提供。每个版本提供不同级别的I / O功能。

SKU:N / A. 标签:

清除

描述

特征

  • 传感器输入(最多可选)
  • 外部输入(可选) - 4-20mA,4-20 mA环路供电,0-2 VDC,0-10VDC,+/- 2000 MV用于pH / ORP / ISE,PT100,PULSE和MODBUS
  • 模拟输出(可选最多8个)
  • 继电器(最多16个)
  • 数字输入(可选最多16个)
  • 警报和阈值 - 2个用户可配置的警报和阈值,带有死区和每个参数和控制输出的延迟
  • 控制循环(可选最多8个)
  • 控制类型(可选)高/低阈值或PID
  • 通信(可选)Modbus ASCII / RTU(RS485),Modbus TCP(以太网),PROFIBUS DP
  • 数据和事件日志记录
